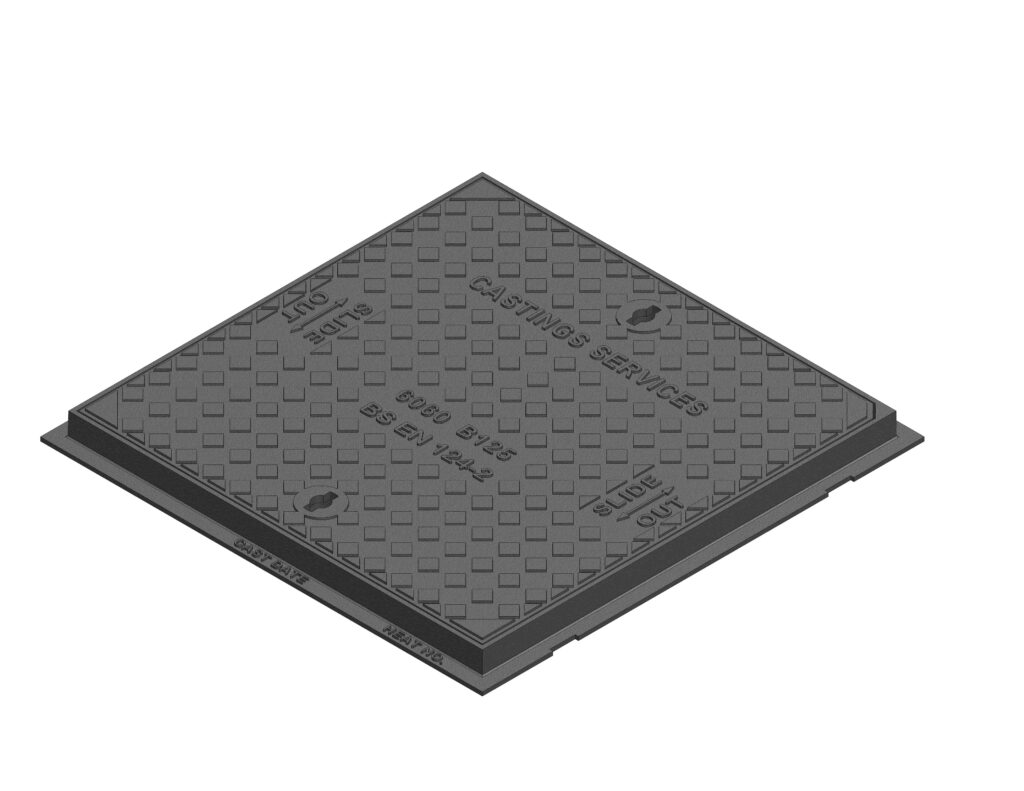

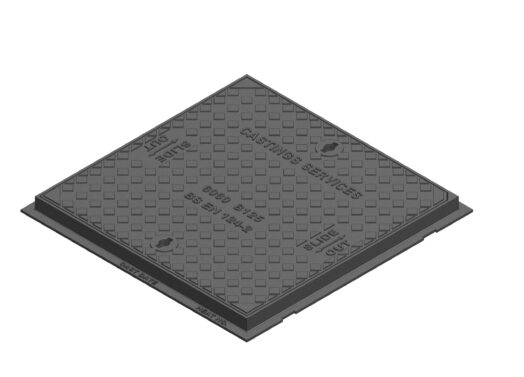

B125 Manhole Covers

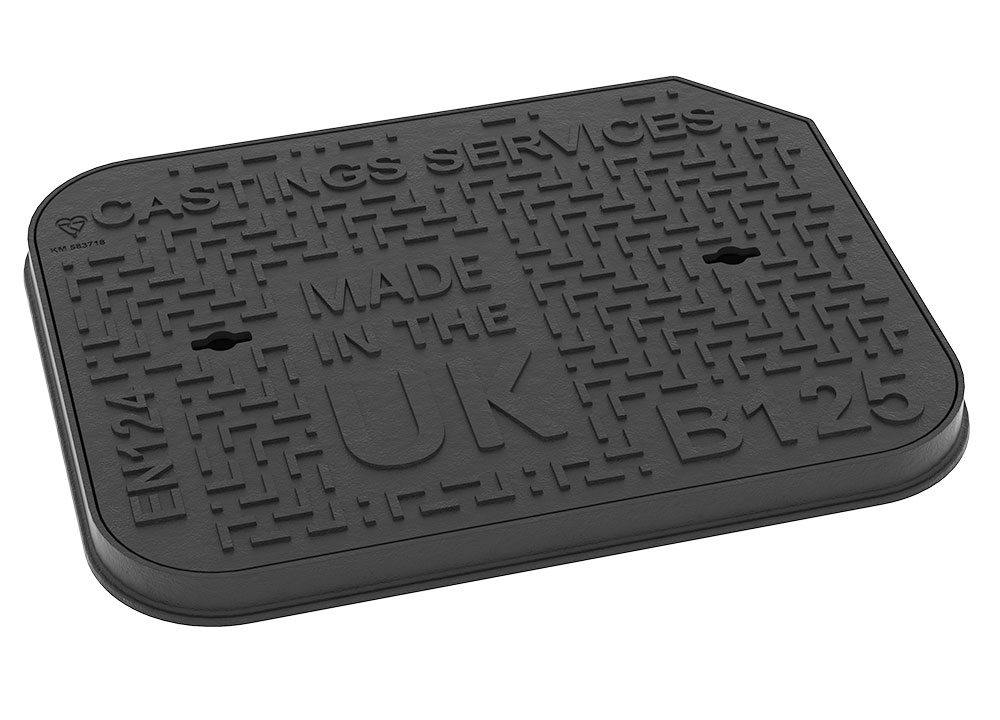

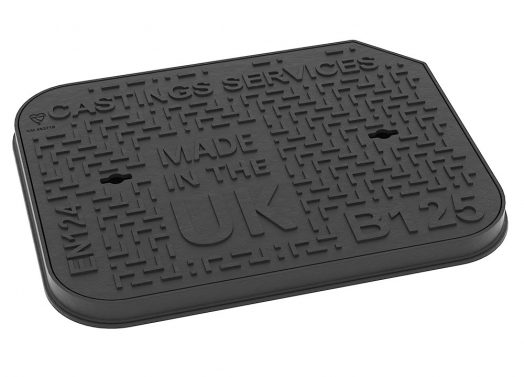

B125 Domestic Medium Duty Cover

B125 Manhole Covers – for use in areas that may be subject very light vehicular use in domestic or industrial settings.

We recommend B125 manhole covers for driveways, footpaths where vehicles may mount the kerb and shopping precincts where delivery vehicles and pallet trucks operate.

Designed and engineered in the UK; our B125 range of covers are extremely robust. They are tested to BS EN124 and carry the kitemark symbol. The lids are designed so that they can slide out from the frame which makes opening the manhole easier and there are various options available including bespoke badges and additional locks.

Key Features:

  • Slide-out lid design
  • Anti-slip tread pattern

Optional Extras

  • PPIC covers can be sealed and locked
  • Covers can be locked with standard or high security locking bolts
  • Bespoke embossed badges and logos

Product Specification

Load ClassClear Opening (mm)Over Base (mm)Depth (mm)Product Code
B125450mm Dia (PPIC cover)55040MDB450
B125600mm Dia72040MDB600
B125450 x 450510 x 51040MDB4545
B125600 x 450660 x 51040MDB6045
B125600 x 600660 x 66040MDB6060
B125675 x 675735 x 73540MDB6767
B125750 x 600810 x 66050MDB7560
B125750 x 750810 x 81050MDB7575
B125900 x 600960 x 66050MDB9060
B125900 x 900960 x 96050MDB909
B1251220 x 6751300 x 70050MDB12067

As part of our ongoing commitment to product development we reserve the right to change all or part of our product design without notice.

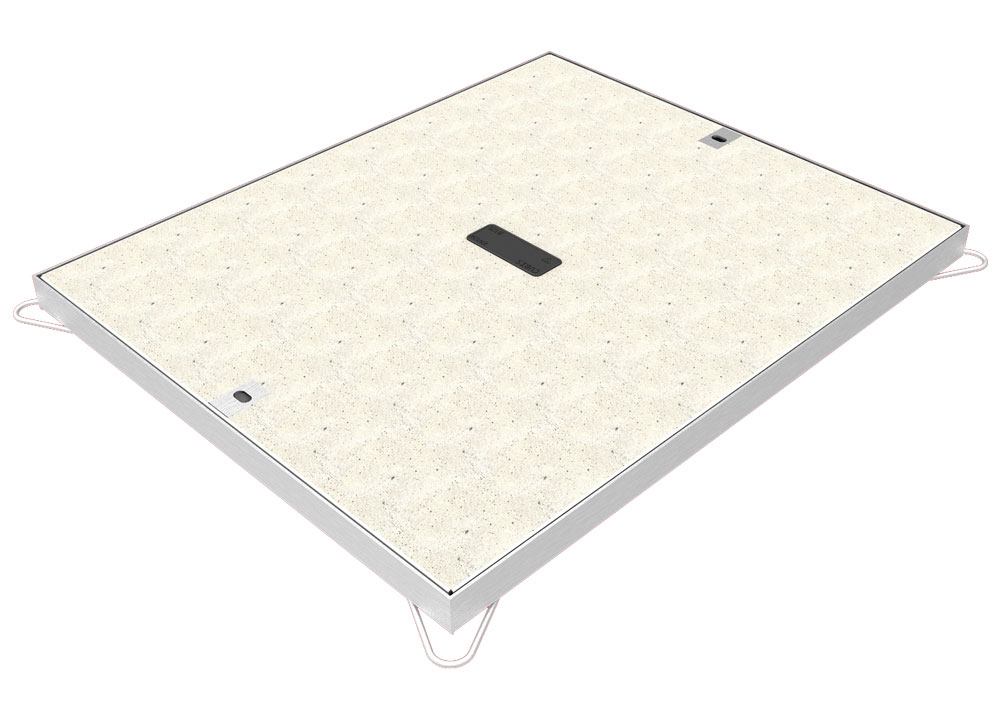

B125 Footway Covers

B125 Footway Covers

Footway covers, or Driveway covers as they are sometimes known, are available in B125 loading and can be supplied as the traditional concrete filled, galvanised steel tray or, as is becoming increasing popular, as a ductile iron/galvanised steel hybrid which consists of a steel frame and ductile iron lid. As with the carriageway covers, the footway telecom covers are available with bespoke badges, locking and additional security features. The size range is extensive and varies from the carriageway range with most sizes being based on historic BT chamber sizes and we have listed the most common sizes below.  Our technical sales team are always on hand to guide you with your selection so please do not hesitate to get in touch.

Key Features:

  • Slide-out lid design
  • Available as concrete infill, ductile iron/steel hybrid or composite.

Optional Extras

  • Security plate sub-frame
  • Bespoke badges
  • Locking kits

Product Specification

Load ClassClear Opening (mm)Depth (mm)Product Code
B125550 x 315640 x 40546DW01/FW1
B125600 x 450690 x 54046DW6045
B125610 x 610700 x 70046DW05/FW5
B125725 x 255915 x 31546DW02/FW2
B125730 x 460820 x 55046DW03
B125750 x 600840 x 69046DW7560
B125900 x 450990 x 54046DW9045
B125915 x 4451005 x 53546DW04/FW4
B125900 x 900990 x 99046DW9090
B1251200 x 6001290 x 69046DW120060
B1251200 x 9001290 x 99046DW120090
B1251200 x 12001290 x 129046DW120120
B1251300 x 8501390 x 94046DW130085
B1251310 x 6101400 x 70046DW06/FW6
B1251500 x 7501590 x 84046DW150075
B1251705 x 7101795 x 80046DW11/FW11
B1252320 x 7402410 x 83046DW10/FW10

As part of our ongoing commitment to product development we reserve the right to change all or part of our product design without notice.
