E600 Manhole Covers

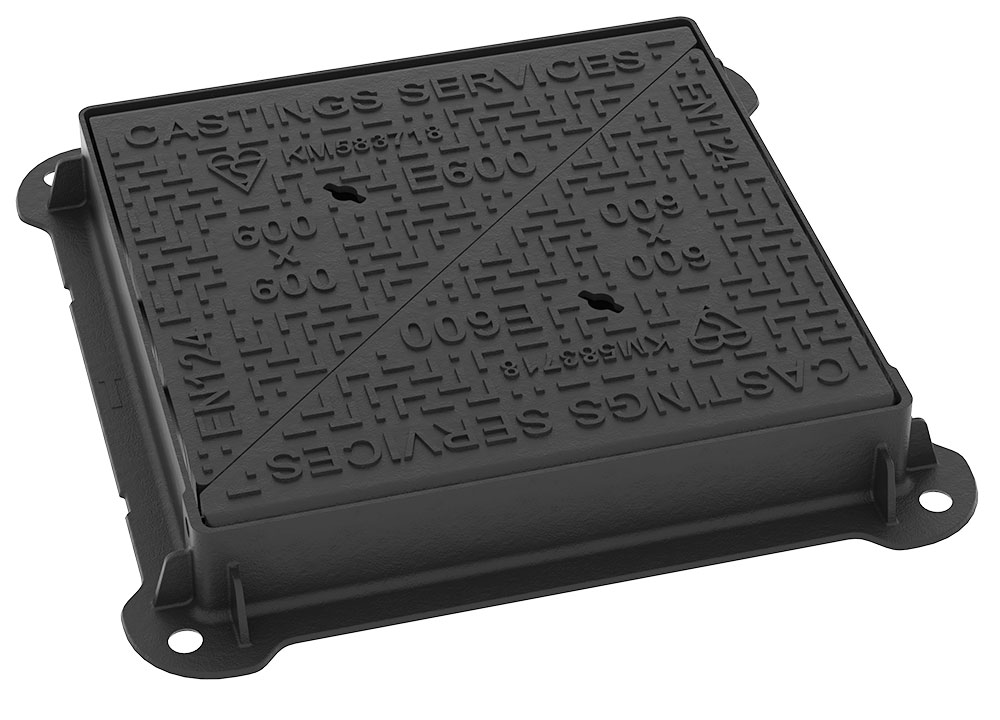

E600 Highway Telecom Dock 600x600 Closed

E600 Manhole Covers – Suitable for areas imposing high wheel loads such as docks and aircraft pavements or extremely heavily trafficked carriageways.

E600 manhole covers are prevalent in docks, airports and heavy industrial areas where extremely heavy vehicles are operating. They are also common in inner city areas where the sheer volume of traffic, coupled with the expense and inconvenience of replacement, means they are often the ideal choice for such applications. The incorporated hinges also mean that these covers are suited for applications where regular access is required which is why they are very popular amongst telecom and utility clients.

Hinged Access Covers

Key Features:

Optional Extras:

  • Covers can be locked with standard or high security locking systems
  • Bespoke embossed badges and logos
  • Galvanised mild steel sealing plate
  • Walk on safety grid & fall protection

Product Specification

Load ClassClear Opening (mm)Over Base (mm)Depth (mm)Product Code
E600600 x 600750 x 750150MDE6060
E600675 x 675825 x 825150MDE6767
E600750 x 600900 x 750150MDE7560
E6001220 x 6751390 x 825150MDE122067
E6001830 x 6752017 x 915150MDE183067
E6001070 x 7501220 x 950150MDE107075
E6001000 x 10001150 x 1150150MDE100100
E6001200 x 9001350 x 1050150MDE120090
E6001200 x 12001350 x 1350150MDE120120
E6001500 x 7501660 x 950150MDE150075
E6001500 x 9001660 x 1050150MDE150090

As part of our ongoing commitment to product development we reserve the right to change all or part of our product design without notice.

Large Span Multipart Covers

Gas Air Tight Inspection Covers

Ermatic covers are gas, air and water tight as standard. They are modular units which can be configured in numerous ways, the sizes given below or small example of the more common sizes we supply. If you have any large chambers or duct runs that need covering then please don’t hesitate to contact our sales team.

Key Features:

  • Machined seated lids make for gas, air and water tight seal
  • Slide-out design for easy handling
  • Anti-slip tread pattern on solid top covers
  • HA104 Compliant
  • BS7903 Compliant
  • EN124-2 Compliant

Optional Extras:

  • Available in solid top or recessed for concrete infill
  • Covers can be locked with standard or high security locking systems
  • Bespoke embossed badges and logos
  • Walk on safety grid & fall protection
  • Spring assisted lifting
  • Peep hole for fire hydrant access

Product Specification

Load ClassClear Opening (mm)Over Base (mm)Depth (mm)Product Code
E600600 x 600710 x 710150ER6S060060
ER6R060060
E600750 x 600860 x 710150ER6S075060
ER6R075060
E600750 x 750860 x 860150ER6S075075
ER6R075075
E600900 x 6001010 x 710150ER6S090060
ER6R090060
E600900 x 9001010 x 1010150ER6S090090
ER6S090090
E6001220 x 6001330 x 710150ER6S122060
ER6R122060
E6001220 x 9001330 x 1010150ER6S122090
ER6R122090
E6001520 x 9001630 x 1010150ER6S152090
ER6R152090
E6001520 x 7501630 x 860150ER6S152075
ER6R152075
E6001820 x 9001830 x 1010150ER6S182090
ER6S182090
E6002140 x 7502250 x 860150ER6S214075
ER6S214075

As part of our ongoing commitment to product development we reserve the right to change all or part of our product design without notice.
