F900 Manhole Covers

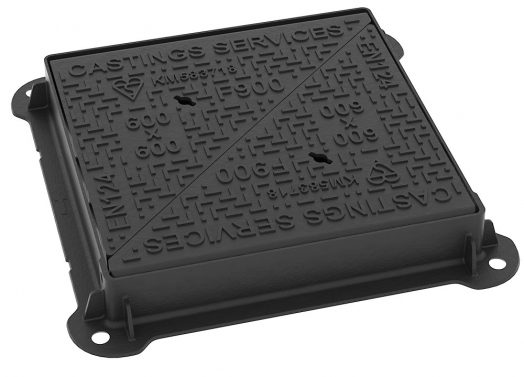

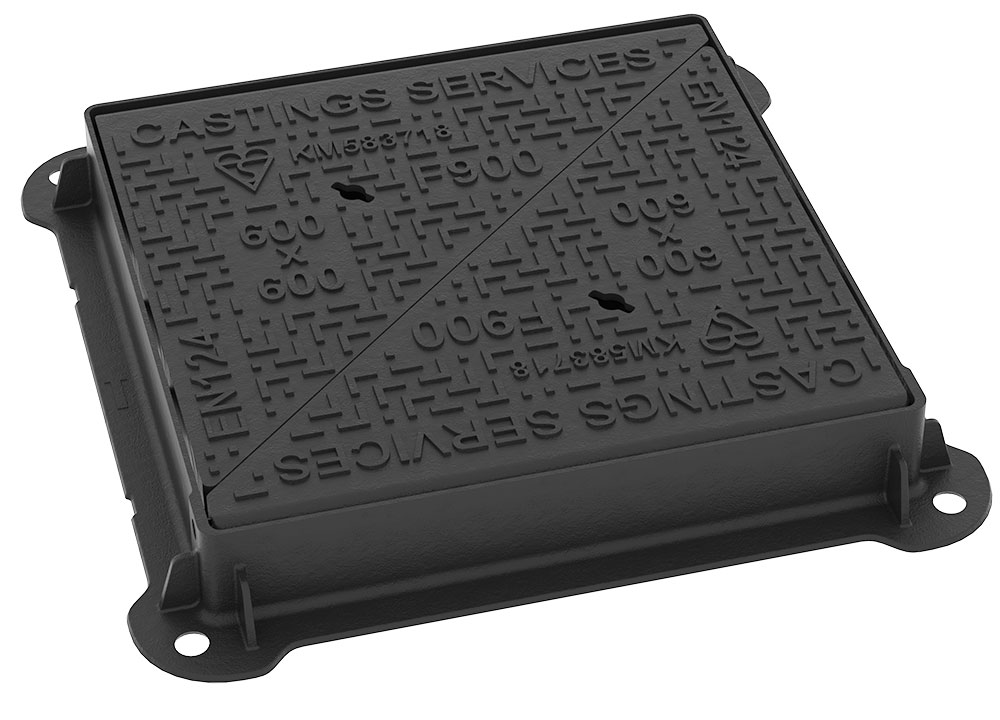

F900 Telecom Dock 600 x 600 Closed

F900 Manhole Covers – Suitable for areas imposing extremely high wheel loads such as runways and aircraft pavements or busy industrial areas with solid wheeled vehicles such as forklift trucks.

Extreme loading covers are one our specialist areas and we work with numerous clients on MOD sites and Airports where these products are required. Quality is everything when it comes to these projects which is why we only work with leading UK, European and US foundries when manufacturing F900 manhole covers.

Key Features:

  • Double triangular, non-rock lids
  • Hinged for one man operation
  • Anti-slip tread pattern
  • HA104 Compliant
  • BS7903 Compliant
  • EN124-2 Compliant

Optional Extras:

  • Covers can be locked with standard or high security locking systems
  • Bespoke embossed badges and logos
  • Galvanised mild steel sealing plate
  • Walk on safety grid & fall protection

Product Specification

Load ClassClear Opening (mm)Over Base (mm)Depth (mm)Product Code
F900600 x 600750 x 750150MDF6060
F900675 x 675825 x 825150MDF6767
F900750 x 750910 x 950120MDF7575
F9001220 x 6751400 x 915150MDF122067
F9001830 x 6752017 x 915150MDF183067
F9001500 x 7501660 x 950150MDF150075
F9002250 x 7502416 x 950150MDF225075
F9001000 x 10001245 x 1060180MDF100100

As part of our ongoing commitment to product development we reserve the right to change all or part of our product design without notice.

Large Span Multipart Covers

Gas Air Tight Inspection Covers

Ermatic covers are gas, air and water tight as standard. They are modular units which can be configured in numerous ways, the sizes given below or small example of the more common sizes we supply. If you have any large chambers or duct runs that need covering then please don’t hesitate to contact our sales team.

Key Features:

  • Machined seated lids make for gas, air and water tight seal
  • Slide-out design for easy handling
  • Anti-slip tread pattern on solid top covers
  • HA104 Compliant
  • BS7903 Compliant
  • EN124-2 Compliant

Optional Extras:

  • Available in solid top or recessed for concrete infill
  • Covers can be locked with standard or high security locking systems
  • Bespoke embossed badges and logos
  • Walk on safety grid & fall protection
  • Spring assisted lifting
  • Peephole for fire hydrant access.

Product Specification

Load ClassClear Opening (mm)Over Base (mm)Depth (mm)Product Code
F900400 x 400550 x 550100DT9S040040
F900600 x 600710 x 710150ER9S060060
ER9R060060
F900750 x 600860 x 710150ER9S075060
ER9R075060
F900750 x 750860 x 860150ER9S075075
ER9R075075
F9001220 x 6801330 x 710150ER9S122068
ER9R122068
F9001220 x 7501330 x 860150ER9S122075
ER9R122075
F9002290 x 7502400 x 860150ER9S229075
ER9R229075
F9001520 x 7501630 x 860150ER9S152075
ER9R152075
F9001820 x 7501930 x 860150ER9S182075
ER9R182075
F9002440 x 9002550 x 1010150ER9S244090
ER9R244090
F9001820 x 9001930 x 1010150ER9S182090
ER9R182090
F9001220 x 13701330 x 1480150ER9S122137
ER9R122137
F9001540 x 10001650 x 1100150ER9S154100
ER9R154100
F9001520 x 19701630 x 2080150ER9S152197
ER9R152197
F9001370 x 9001480 x 1010150ER9S137090
ER9R137090

As part of our ongoing commitment to product development we reserve the right to change all or part of our product design without notice.
