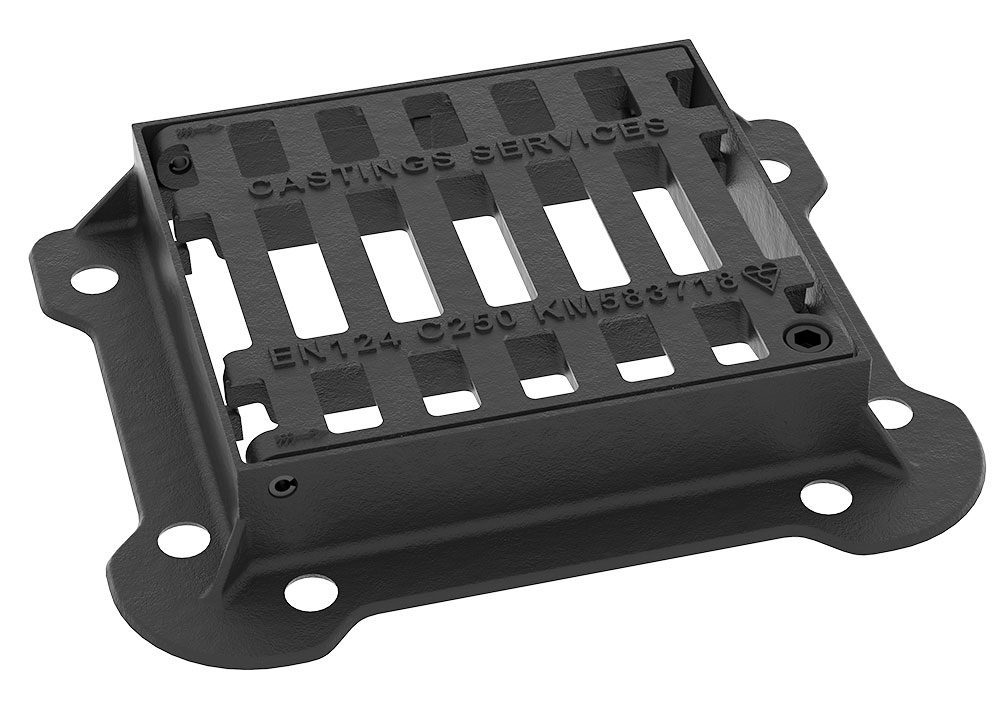

C250 Gully Grates

420 X 420 D400 GRT & FRM CASTINGS SERVICES

C250 Gully Grates – Suitable for kerbside channels of roads extending 50cm in to the carriage way or 20cm in to the footway. Ideal for car parks, petrol stations and where slow moving traffic is present.

Our range of C250 gully grates are suited for kerb side applications on roads and in areas where slow moving heavy vehicles are present. The anti-theft hinge design prevents scrap metal theft and an additional stainless steel bolt can be added to deter unauthorised opening. For gratings in cycle paths or car parks we have a pedestrian mesh grating to give added safety.

Key Features:

  • Left hand opening (traffic flow)
  • Anti-theft hinges
  • Pedestrian and cycle friendly mesh (GDC363107PED)

Optional Extras:

  • Anti-tamper stainless steel locking bolt
  • Right hand opening hinge

Product Specification

Load ClassClear Opening (mm)Over Base (mm)Depth (mm)Additional FeaturesProduct Code
C250350 x 310494 x 39475HingedGDC3531
C250365 x 310509 x 39475Hinged Pedestrian MeshGDC3631PED

As part of our ongoing commitment to product development we reserve the right to change all or part of our product design without notice.
