D400 Gully Grates

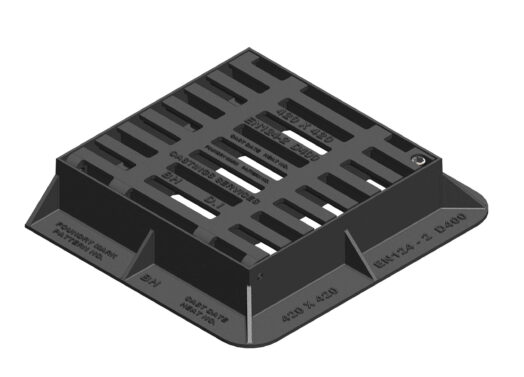

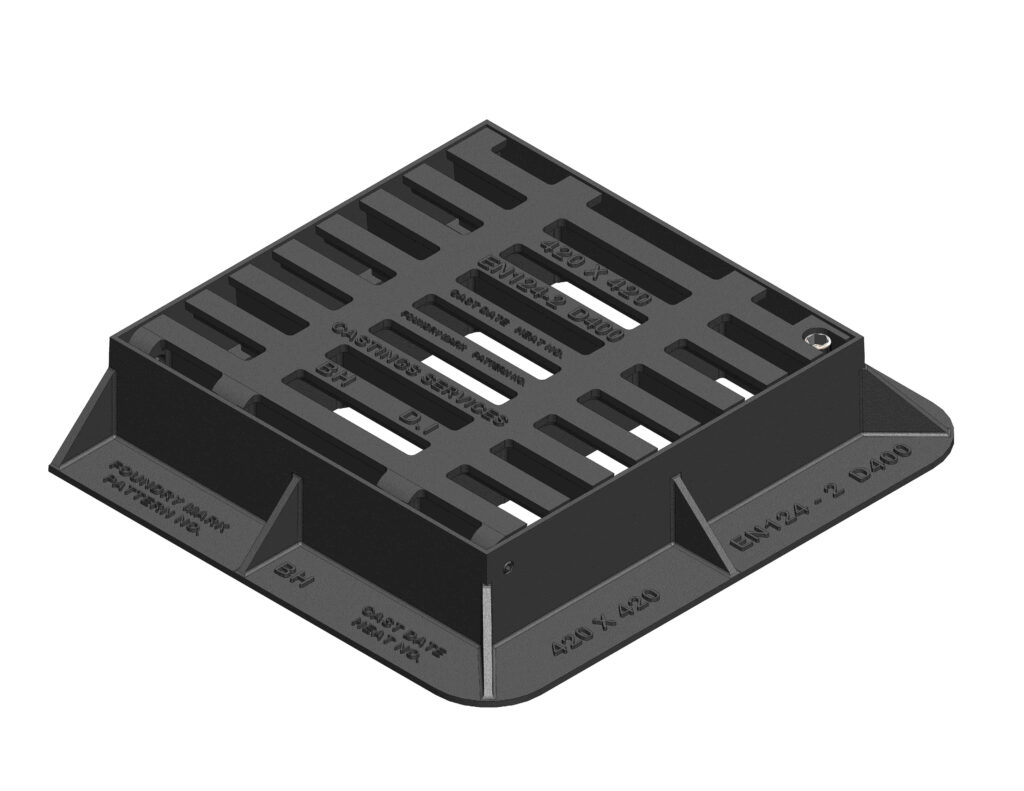

420 X 420 D400 GRT & FRM CASTINGS SERVICES

D400 Gully Grates – Suitable for carriageways of roads, hard shoulders and parking areas for all types of road going vehicles.

Our D400 gully grates are tested and certified in compliance with BS EN124 and are also compliant with HA104/09 and BS7903. We also offer additional design features such as anti-theft hinges, locks and pedestrian safe mesh tops for use in shared surfaces. Each gully grate has been designed to have optimum drainage characteristics and the maximum possible waterway.

Key Features:

  • Left hand opening (traffic flow)
  • Anti-theft hinges

Optional Extras:

  • Anti-tamper stainless steel locking bolt
  • Right hand opening hinge
  • V-shaped grating

Product Specification

Load ClassClear Opening (mm)Over Base (mm)Depth (mm)Additional FeaturesProduct Code
D400365 x 310519 x 395100HingedGDD3631
D400365 x 310519 x 395100Hinged LockedGDD3631LK

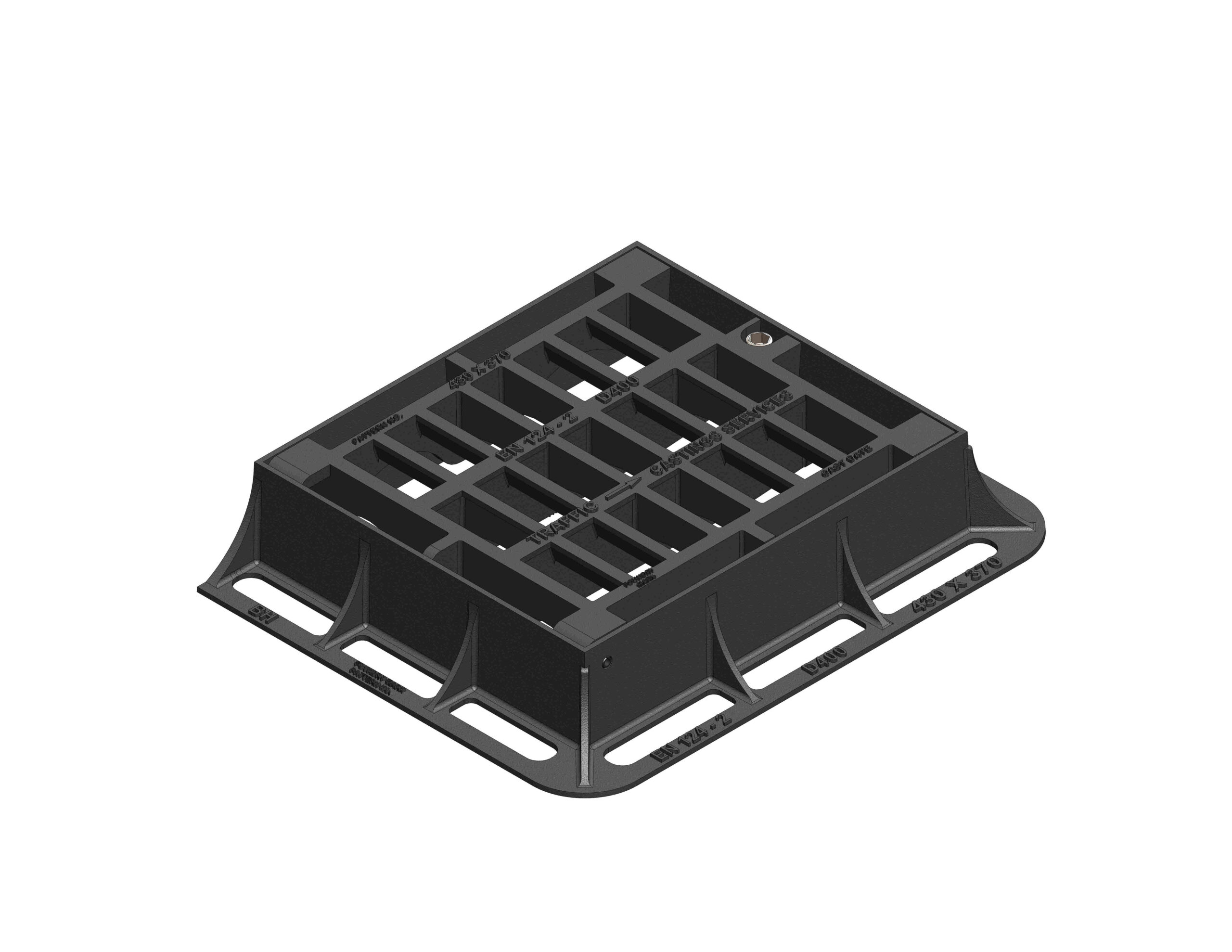

D400430 x 370590 x 459100HingedGDD4337

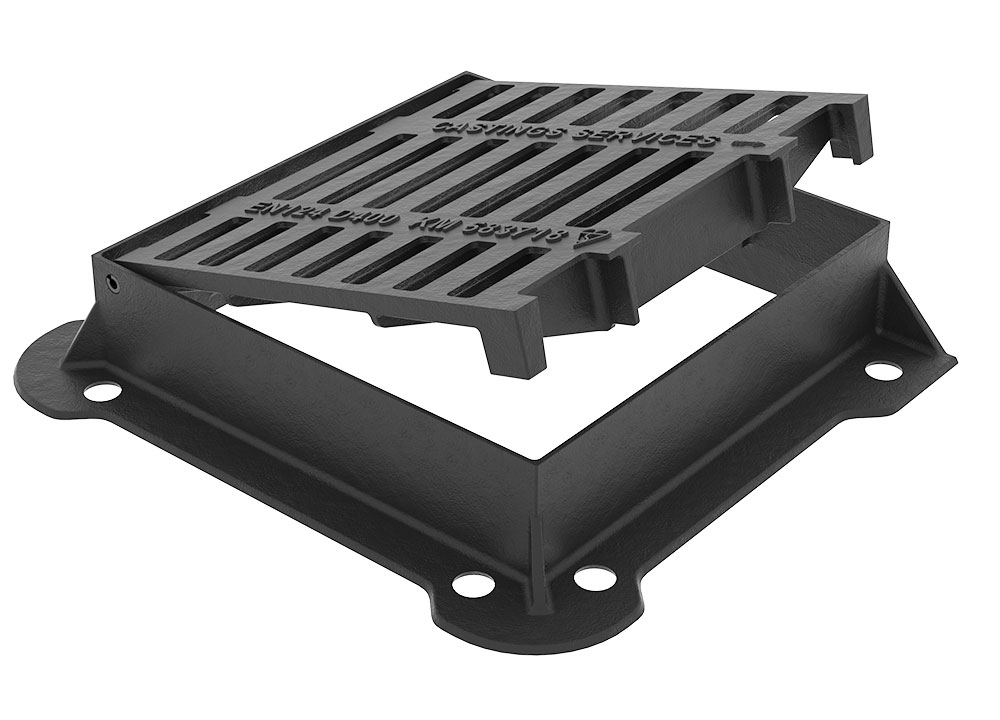

D400420 x 420574 x 505100HingedGDD4242

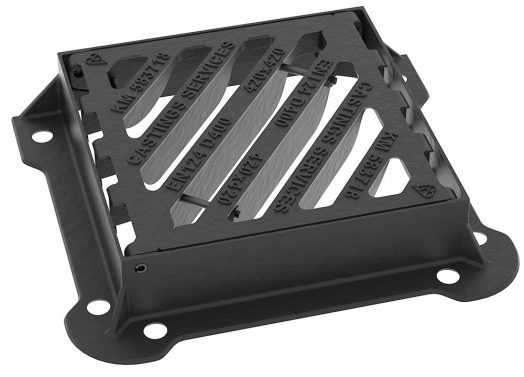

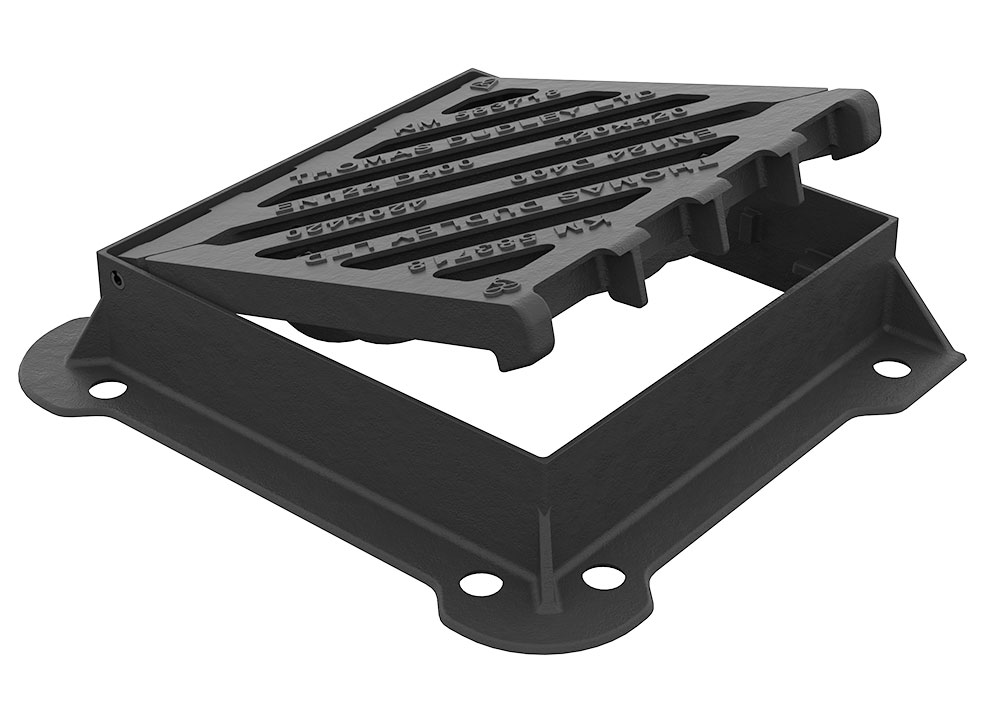

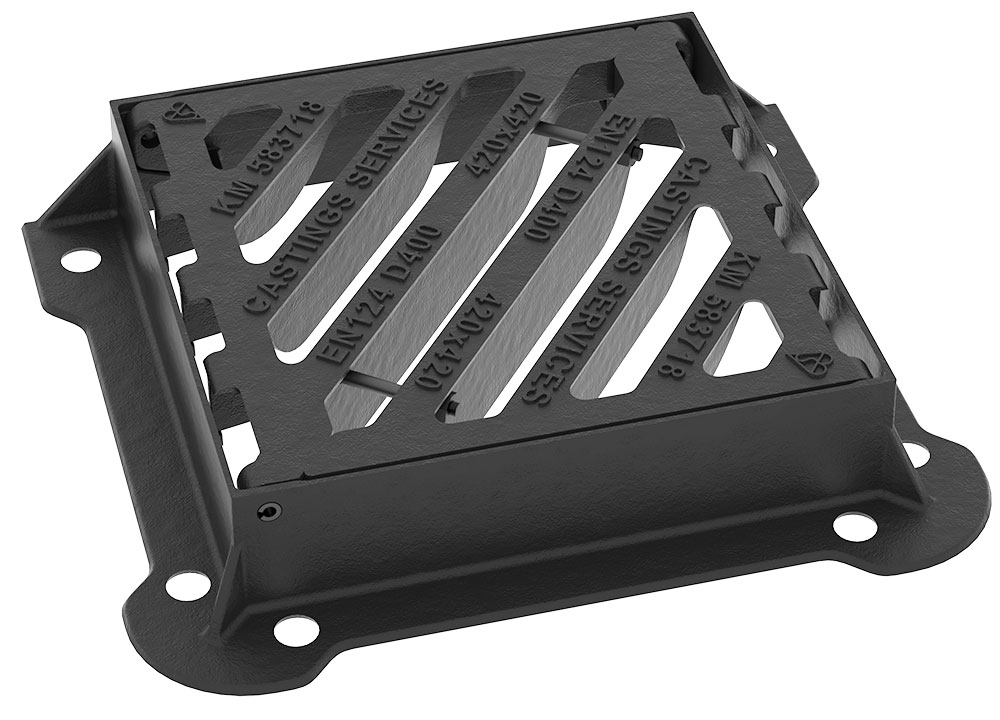

D400420 x 420575 x 505100Hinged Double TriangularGDD4242DT
D400430 x 430584 x 515100Pedestrian MeshGDD4343PED
D400600 x 600675 x 750100Double TriangularGDD6060
D4001220 x 6801385 x 850100Double TriangularGDD122068
D4001830 x 6801985 x 850100Double TriangularGDD183068

As part of our ongoing commitment to product development we reserve the right to change all or part of our product design without notice.

Side Inlet Gullies

Designed to fit in to the kerb line and match with the kerb profile. Side inlet gullies or kerb gullies are popular on dual carriageways and other busy roadways where gratings are kept out of the line of the traffic.

Key Features:

  • Hinged Lids
  • Matches kerb profile

Optional Extras:

  • Road retaining bar
  • Sub-frame (to lift 150mm to 200mm)

Product Specification

Load ClassClear Opening (mm)Over Base (mm)Depth (mm)Kerb ProfileProduct Code
D400430 x 370560 x 410150Half BatterGDDK115-HB
D400430 x 370560 x 41015045 SplayGDDK115-SP
Grade A430 x 370565 x 465200Bull NoseGDDK160-BN

As part of our ongoing commitment to product development we reserve the right to change all or part of our product design without notice.
